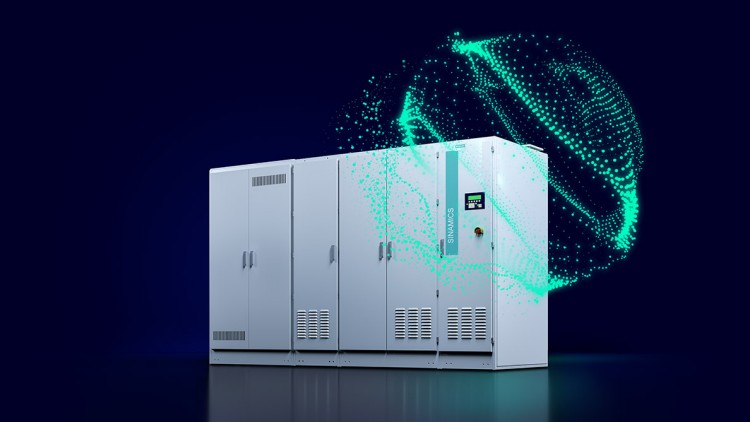

Siemens Medium Voltage Converter GM150

SINAMICS GM150 is a universal and simple drive converter for single-motor applications with variable and constant torque characteristics in a compact and efficient design, but without regenerative feedback. The SINAMICS GM150 (IGBT / IGCT) variable speed drive offers simplicity due to the use of standardized engineering tools like Drive Technology Configurator for system integration and STARTER for fast and user-friendly commissioning. SINAMICS GM150 distinguishes itself as competitive, rugged and service friendly.

Features at a glance

1- Easy to maintain and operate safely and reliably

2- Optimized footprint and design

3- Common housing / system for IGBT and IGCT cooling principles

4- Transformer flexibility

Technical data overview

Technology	Cooling	Rated output voltage	Max. type rating
IGBT	Air	3 AC 2.3 kV 3 AC 3.3 kV 3 AC 4.16 kV	1 to 3.2 MVA 1 to 8 MVA 1.3 to 10.1 MVA
IGBT	Water	3 AC 2.3 kV 3 AC 3.3 kV 3 AC 4.16 kV	2 to 4 MVA 2 to 10.3 MVA 2 to 13 MVA
IGCT	Water	3 AC 3.3 kV	10 to 21 MVA
IGCT Tandem configuration	Water	3 AC 3.3 kV (2 x 3.3 kV)	20 to 24 MVA
