Weg General Purpose Motors W40

Description

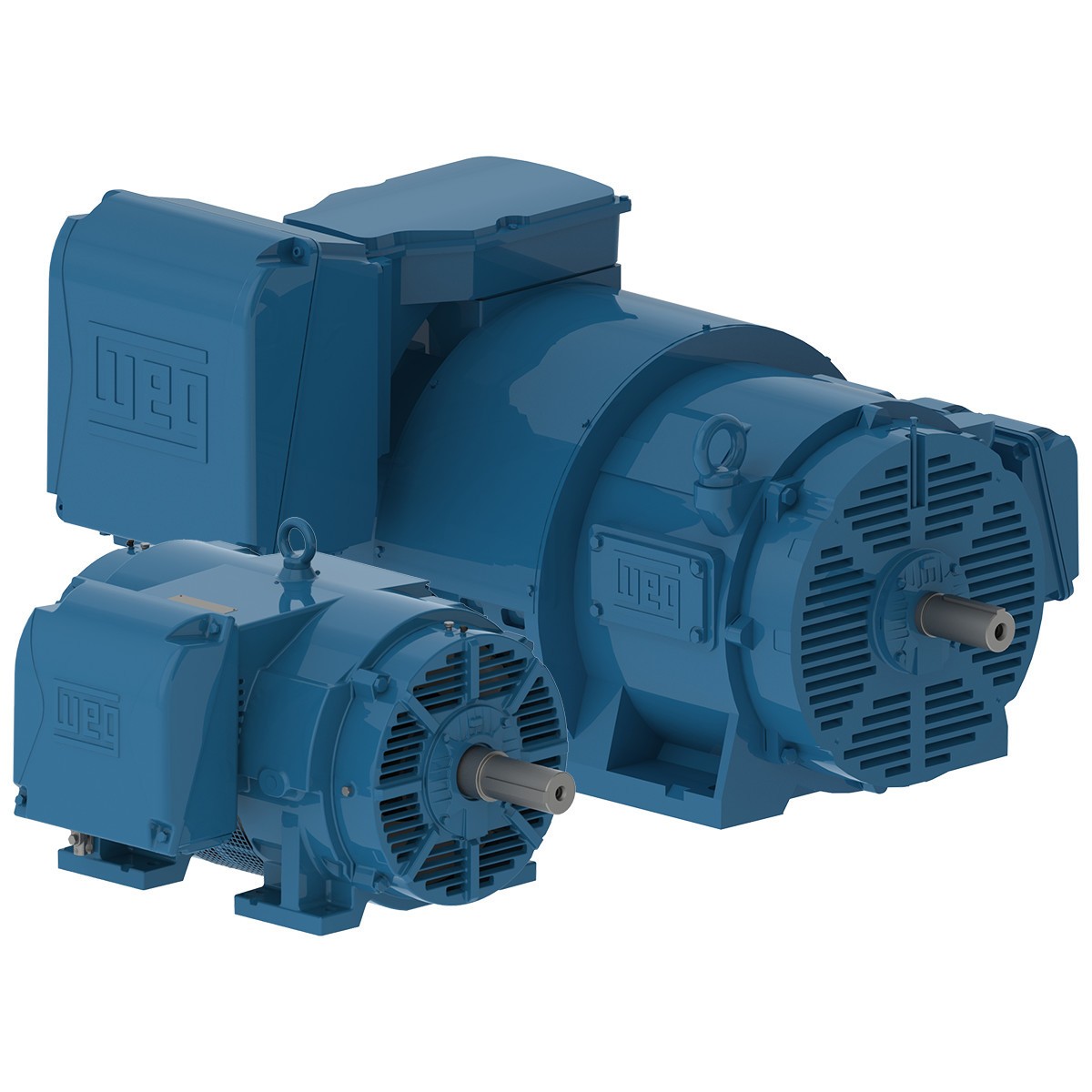

The W40 motor was designed to operate in environments where dirt and humidity are minimal. It has torque with Design "B" for frames 254 to 444/5T and Design "A" for frames 447/9T and 5010/11T. They were especially designed to allow maximum ventilation, cooling and performance in a great variety of applications.

Standard Features

Rated output: 11 to 1500 kW
Number of poles: 2 and 4
Frame sizes: IEC 160M to 450K/J
Efficiency levels: IE2 or IE3
Frequency: 50 or 60 Hz
Voltage: 380 to 3300 V
Insulation class: F (DT 80 K)
Degree of protection: ODP (IP23) for frames 160L to 400, WPI (IP24) for frame size 450K/J
Cooling method: IC01, according to DIN EN 60034-6
Mounting: B3 foot
Thermistors (PTC), one per phase in windings for frame size 160M and up

Options

Voltage: 5000 to 6600 V
Number of poles: 6 or 8 poles and above
Other mounting configurations

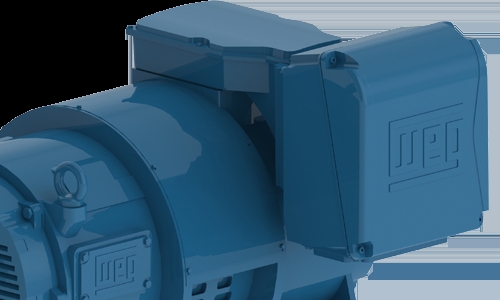

Accessories terminal box (standard for medium and high voltage motors)
Thermal protections: thermostats or thermos resistances (Pt-100) on windings or bearings
Class H insulation
Space heaters
Cable glands
Roller bearings
Sleeve bearings for frame size 400 and up
Degree of protection WPI or WPII (IP24) for frame size 315 and up

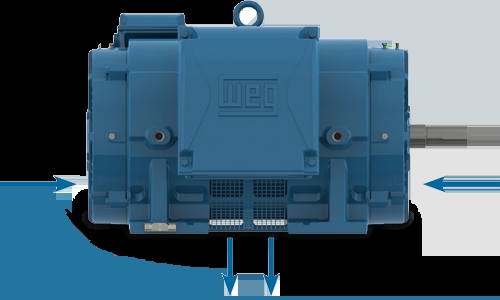

Ventilation System

It uses external air for cooling
The rotor has fins

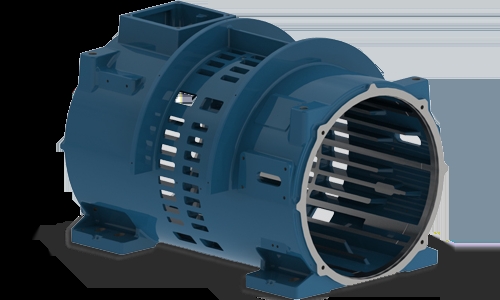

Frame

Designed to enable maximum cooling and provide low vibration levels, high mechanical strength and durability
Manufactured in cast iron FC-200 – excellent casting quality combined with high mechanical strength
Internal fins starting from 315G/F

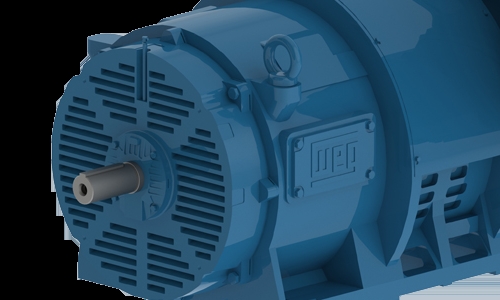

Endshields

Surface with optimized air inlet that allows good air distribution and reduces the possibility of water ingress
Robust design providing high resistance to vibration and impact
Compatible with SPM vibration sensor
