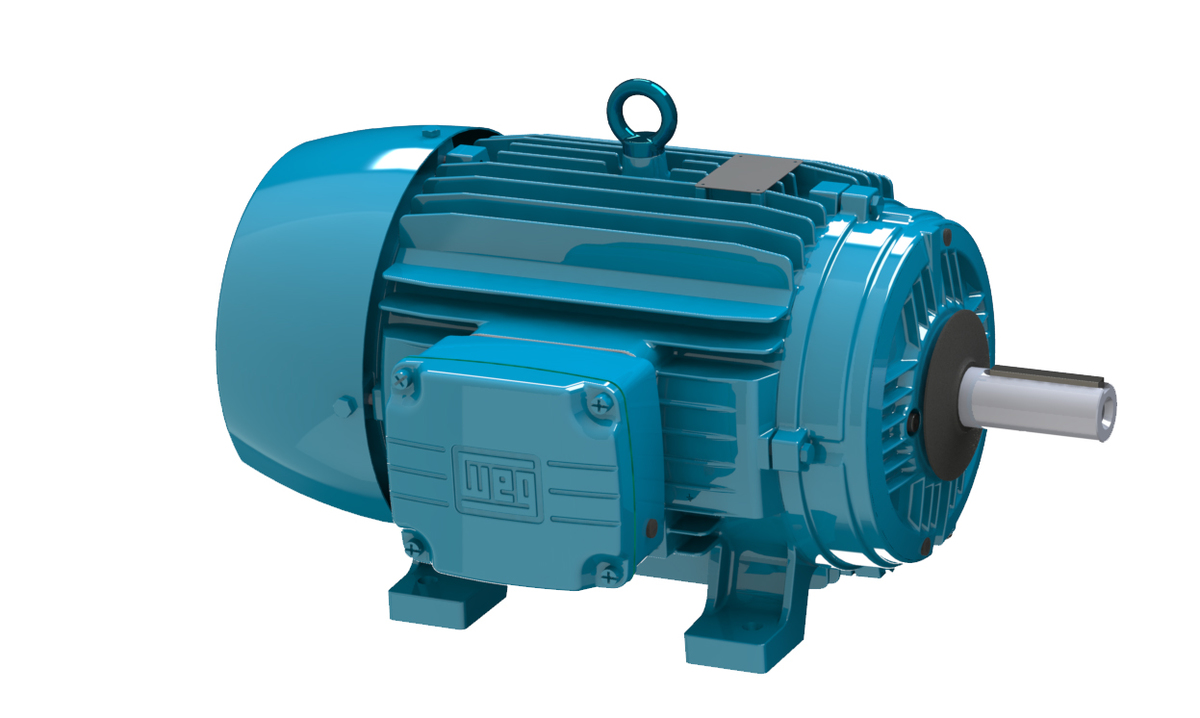

WEG Cooling Tower Motor

Description

Cooling Tower motors are designed with a carefully selected set of features that allows reliable operation in 100% humidity applications and high corrosive environments. The line is suitable for frequency inverter operation, being capable to operate in either horizontal or vertical mounting.

Cooling Tower Motor #1

Motors installed in the top of the cooling tower or directly subjected to the cooling tower air flow.

• Efficiency levels: IE1, IE2, IE3 or IE4
• Cooling Method: TEFC (TEAO upon request)
• Degree of protection: IP55
• Rated output: 1.1 to 90kW
• Number of poles: 2, 4, 6, 8
• Frame sizes: 90 to 280S/M
• Voltage: single or multivoltage design
• Insulation class: F
• Squirrel cage rotor in aluminum die cast
• Double sealed 2RS bearings (up to frame size 200L)
• Internal epoxy coating (tropicalization)
• Sealing compound at fitting joints
• Space heaters (Optional)
• Rubber drain plugs in endshileds and terminal box
• Shaft slinger
• Dedicated Nameplate and painting plan
•
